Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Naipu
  • Model Number: SP(R)
  • Theory: Centrifugal Pump
  • Structure: Single-stage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Diesel
  • Pressure: High Pressure
  • Application: Carbon transfer,Monitoring, Magnetite mixing
  • OEM: YES
  • Certificate: CE, SGS, ISO
  • Material: A05, A07, A49, A61, R55, S42, S31...
  • Warranty: 1 Year Warranty(except Wearing Parts)
  • Drive style: BD, DC
  • Shaft length: 0.9-1.8 m
  • Color: Any
  • Impeller: Open
  • Size: 1.5-12 inches
  • Bearing: ZWZ, SKF, Timken...

Packaging & Delivery

Packaging Details Standard export wooden cases
Delivery Time within 15 days

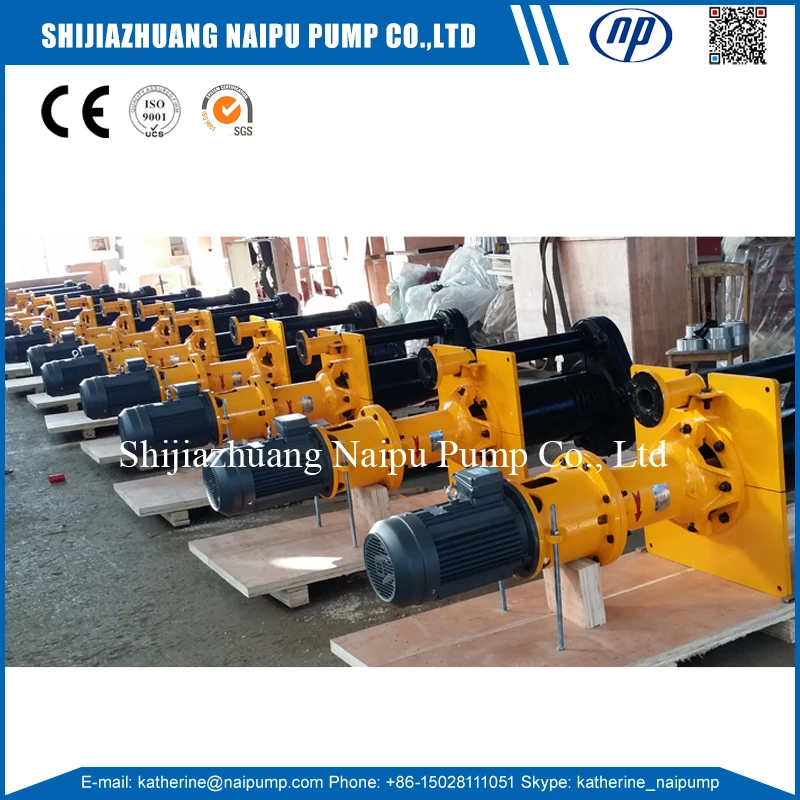

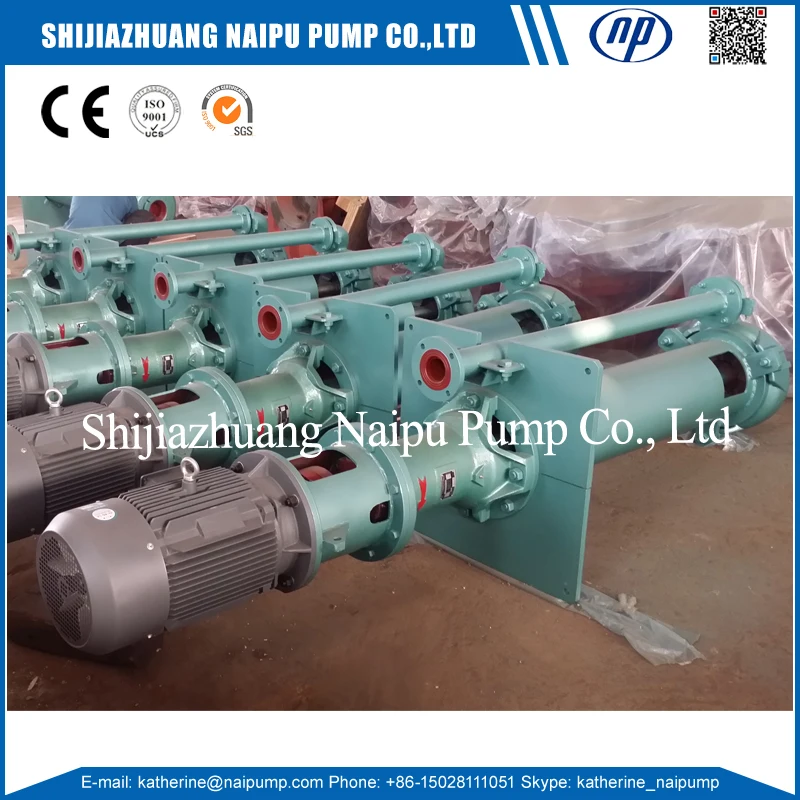

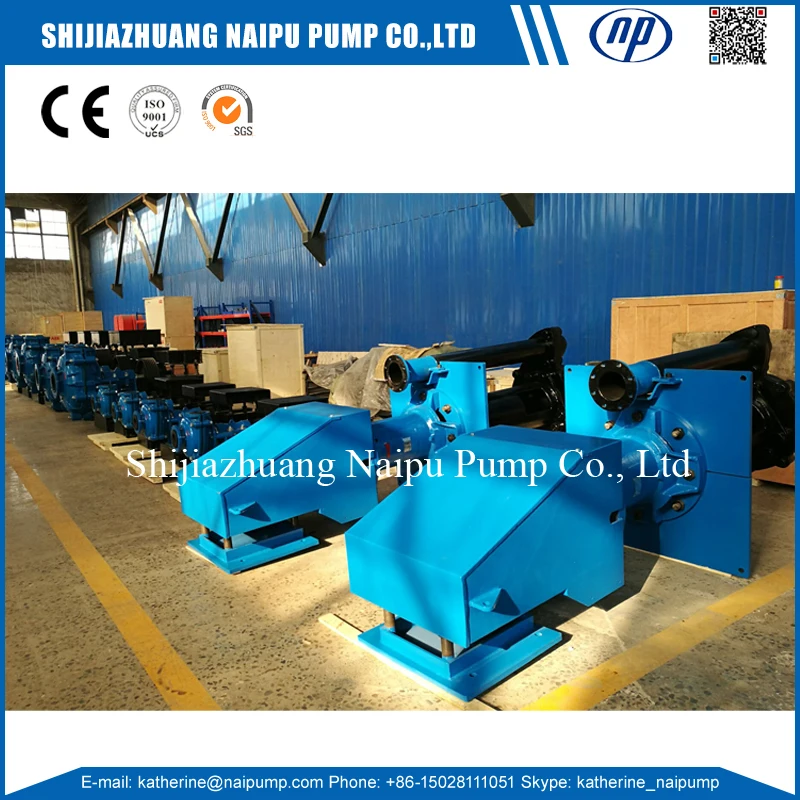

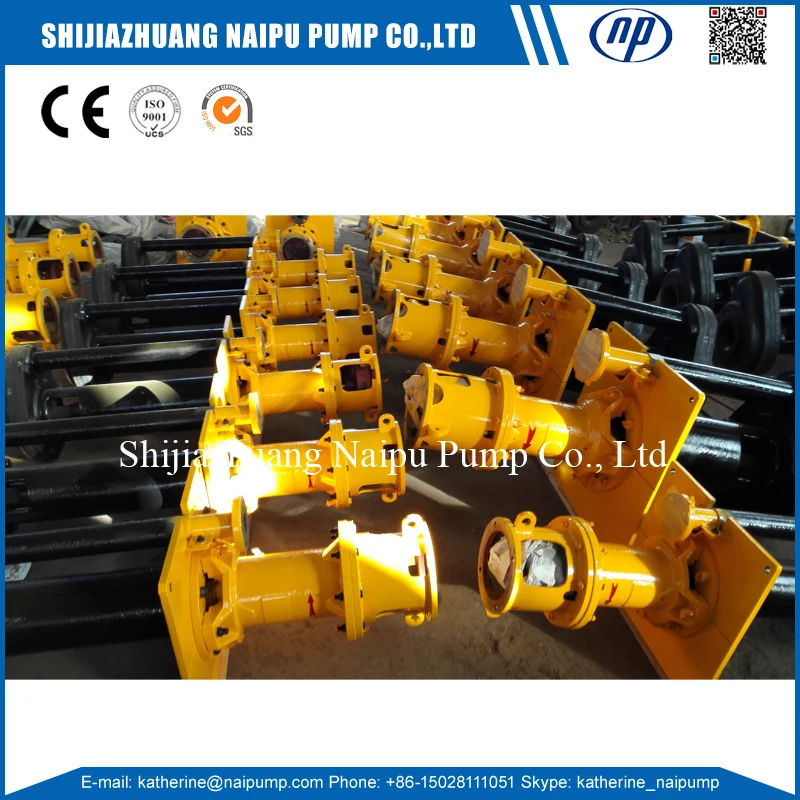

China SP(R) Vertical Slurry Pump for Mining

 Product Description

PV-SP(R) series Slurry pumps



1. Vertical type centrifugal slurry pumps
2. Application for sump pumping, Single stage pump

PV-SP(R) centrifugal slurry pumps are mainly used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.



Specification



D: 40-300 mm

Q: 17-1267 m3/h

H: 4-40 m



Function:



1. Wear-resistant metal, the impeller selection of wear-resistant metal or rubber material.

2. PV-SP (R) type sump pump parts, immersed in liquid rubber lining.

3. Different length of the pump drive shaft or inhaled could be selected

4. V-belt drive, direct drive, and flexible coupling.
5. Bearing to lubricate oils.
6.  use of variable-speed, the best condition in the pump operation, long service life, run-   effective,meet many bad transportation conditions.

Pump construction



Vertical pump construction drawing

Main part number at the drawing

1.Discharge Pipe
2.Column
3.Strainer
4.Back Liner
5.Impeller
6.Pump Casing
7.Lower Pipe

Materials of construction

 IMPELLERSCASINGCOLUMNDISCHARGESEALS
StandardHigh Chrome Alloy  RubberHigh Chrome Alloy  RubberMild Steel
Mild Steel Rubber Lined
Mild Steel
Mild Steel Rubber Lined

Natural Rubber

Rubber

OptionsButyl
EPDM
Hypalon
Polyurethane
316 SS
W 151
Neoprene
Butyl
EPDM
Hypalon
Nitrile
316 SS
W 151
Neoprene
Butyl
Nitrile
316 SS
Neoprene
Butyl
Nitrile
316 SS
Nordel
Neoprene
Viton
Hypalon
Butyl
EPDM



Pump parameters

Vertical slurry pump selection chart



Pump performance parameters



Type

Allowable Max. Power

(Kw)

Range  Of  Performance

Impeller

Capacity

Head

m

Speed

rpm

Max Efficiency

%

No. of Vanes

Diameter

mm

m³/hr

L/S

40PV-SP

15

19.44-43.2

5.4-12

4.5-28.5

1000-2200

40

5

188

65QV-SP

30

23.4-111

6.5-30.8

5-29.5

700-1500

50

5

280

100RV-SP

75

54-289

15-80.3

5-35

500-1200

56

5

370

150SV-SP

110

108-479.16

30-133.1

8.5-40

500-1000

52

5

450

200SV-SP

110

189-891

152.5-247.5

6.5-37

400-850

64

5

520

250TV-SP

200

261-1089

72.5-302.5

7.5-33.5

400-750

60

5

575

300TV-SP

200

288-1267

80-352

6.5-33

350-700

50

5

610

 40PV-SPR 15 17.28-39.6  4.8-11  4-26 1000-2200  40 5  188
 65QV-SPR 30  22.5-105 6.25-29.15 5.5-30.5  700-1500  51 5  280
100RV-SPR 7564.8-28518-79.27.5-36  600-1200 62 5  370
Packaging & Shipping

Packaging details: 1. Outside package: standard export wooden cases. 2. Inner package: Stretch film.



Our Services
OEM serviceProduce the pump and spare parts according to client's drawing or sample.
Pump slectionHelp customers select the type, size and operating speed of pumps that will perform at the lowest cost.
Using serviceOffer Design, Installation, Repair and Maintenance solutions and Mine measuring up service.
Quality controlPay more attention to the quality in every process with different instruments.
Material serviceInterchangeable metal design allow best material choice for any application.
After-sales serviceProvide lifetime after sale service to solve any question during uses and large stock for standard spare parts.
GuaranteeOne year guarantee for whole machine except of the wet end parts.





Certifications

CE, SGS, ISO9001 Certification

Company Information

Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps and spare parts. Which own Mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop.



Various requirement for materials in the market, Naipu offering wet end part material as following. Metal A05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, R55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.

Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.

Naipu is willing to undertake any OEM(Original Equipment Manufacture) order for pump and mining equipment accoring to the drawing or sample.
