100RV - SP Good Performance Mining Metal Agitator Slurry Pump

FOB Reference Price:Get Latest Price
$3,200.00 - $6,800.00 / Set | 1 Set/Sets 4 inches sump pump (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
NP
Model Number:
100RV - SP
Place of Origin:
Hebei, China
Pressure:
High Pressure
Structure:
Single-stage Pump
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Type:
sump pump
Certificate:
ISO9001 CE
Feature:
Corrosion Resistant
Capacity:
54-289 m3/h
Head:
5-35 m
Material:
Cr27
Submerged depth:
1500 mm
Max power:
75 kw
Impeller:
Open, 5 vane
Warranty:
1 year (except wet parts)
Usage:
Water
Power:
Electric
Fuel:
No
Application:
mining, coal, power, building material and other industrial department
Supply Ability
Supply Ability:
500 Set/Sets per Month Cr26 vertical pump
Packaging & Delivery
Packaging Details
Wooden cases
Port
Tianjin Xingang
Lead Time :
Within 15 days
Product Description

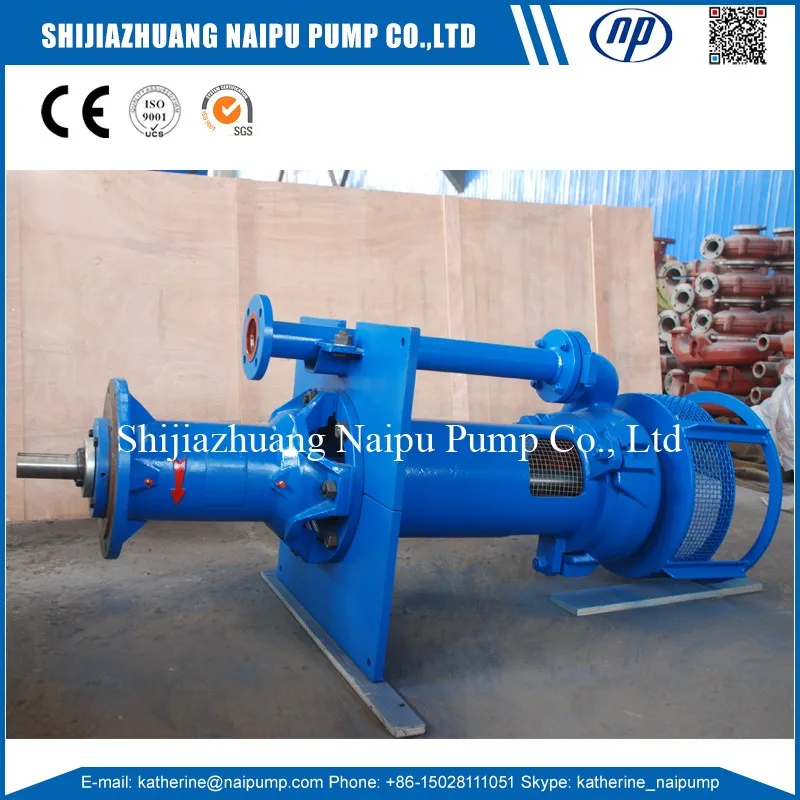

100 RV - SP Good Performance Mining Metal Agitator Slurry Pump.

Impeller - Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids. Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable. The impeller is adjusted axially within the casting during assembly by external shims under the bearing housing feet. No further adjustment is necessary.

Less wear, less corrosion.

Wetted components are available in a wide range of alloys and elastomers.

No submerged bearing failures.

The robust cantilever shaft avoids the need for lower submerged bearings.

No shaft sealing problems.

The vertical cantilever design requires no shaft seal.

No priming required.

The top and bottom inlet design is ideally suited for “snore” conditions.

Less risk of blocking.

The screened inlets and large impeller passages reduce the risk of blockages.

Zero ancillary water costs.

The vertical cantilever design with no gland or submerged bearings avoids the need for expensive gland or bearing flushing water.

1. Discharge Pipe
2. Column: RV10102J (G, J , L, M , Q)
3. Strainer: SP10116-1
4. Backliner: SP10041A05
5. Impeller: SP10206A05
6. Pump Casing: SP10092A05
7. Lower Strainer: SP10116LD21

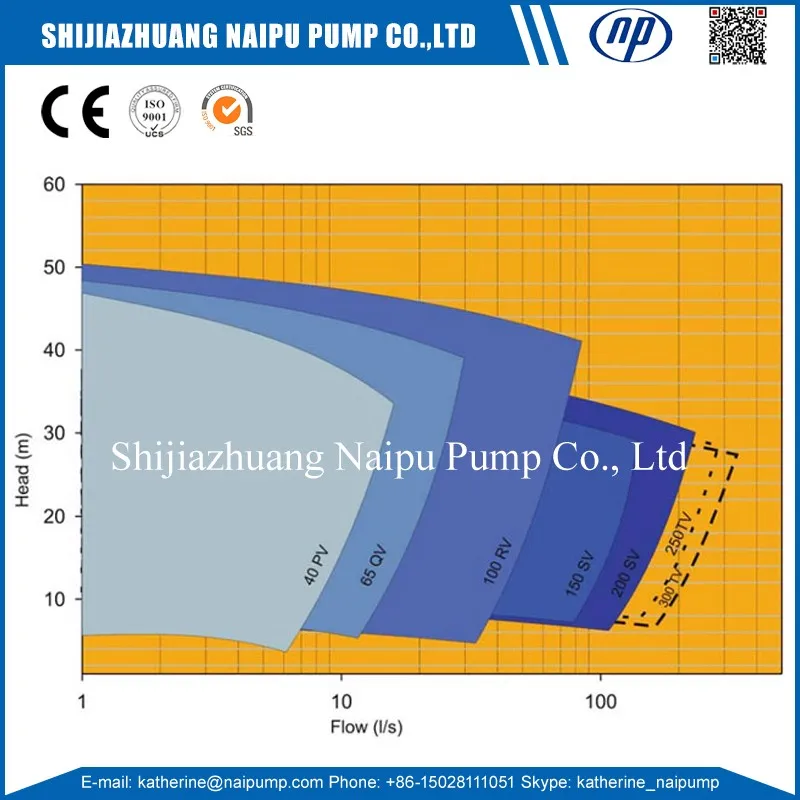

Type
Allowable Max. Power
(Kw)
Capacity
m³/hr
Capacity
L/S
Head

m
Speed

rpm
Max Efficiency
%
No. of Vanes
Impeller
Diameter
mm
40PV-SP
15
19.44-43.2
5.4-12
4.5-28.5
1000-2200
40
5
188
65QV-SP
30
23.4-111
6.5-30.8
5-29.5
700-1500
50
5
280
100RV-SP
75
54-289
15-80.3
5-35
500-1200
56
5
370
150SV-SP
110
108-479.16
30-133.1
8.5-40
500-1000
52
5
450
200SV-SP
110
189-891
152.5-247.5
6.5-37
400-850
64
5
520
250TV-SP
200
261-1089
72.5-302.5
7.5-33.5
400-750
60
5
575
300TV-SP
200
288-1267
80-352
6.5-33
350-700
50
5
610
Detailed Images
Certifications

SGS

ISO9001

CE

Packing & Delivery

Shock bubble film.

Wood pallet.

Wood Box.

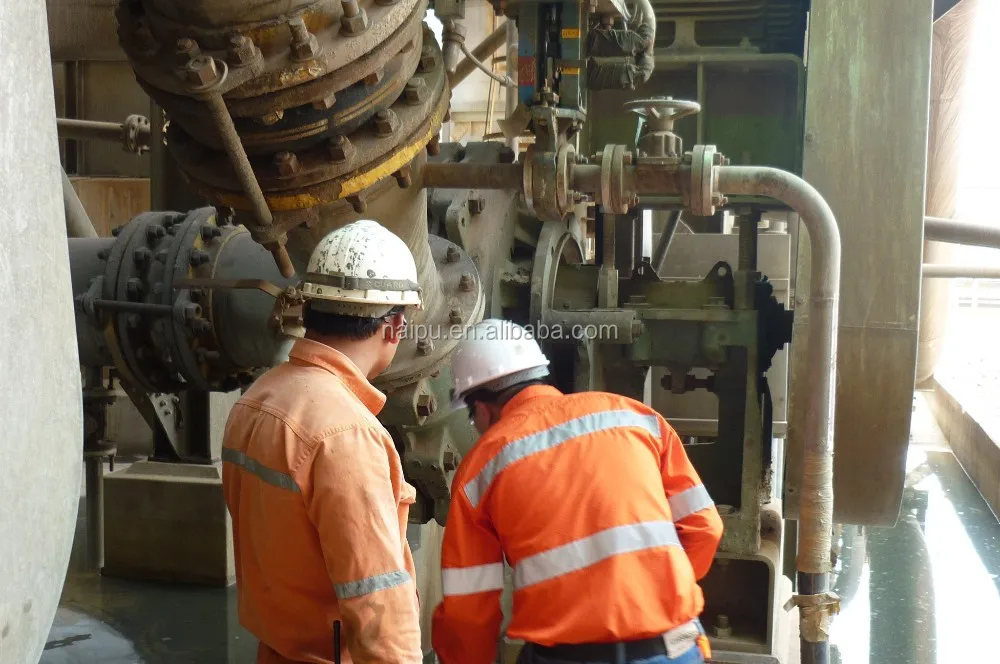

Site Application

China - Iron ore.

14/12 AH

Flow=2000m3/h, Head=40m, efficiency=76%

Outlet horizontal on the top of the pump, fulley enclosed protection, CRz drive

South Africa - Molybdenum Ore.

6/4 AH

Flow=300m3/h, Head=40.5m, efficiency=66%

Outlet horizontal on the bottom of the pump, fully enclosed protection, CV drive

Canada Lead - Zinc Ore.

8/6 AH

Flow=450m3/h, Head=34m, efficiency=70%

Outlet vertical upward, fully enclosed protection, ZVz drive

Russia - Copper Mine.

8 SV-AF

Flow=430m3/h, Head=20m, efficiency=52%

Vertical froth pump work for variety of flotation process, Eliminate foam, even in the case of insufficient feeding. BD drive

Zambia - Copper Mine.

100 RV-SP

Flow=150m3/h, Head=34m, efficiency=50%

Vertical slurry pump immersed in the pool or pit to work. Wet end parts with metal or rubber material. BD drive

Australia - Aluminum ore.

6 S-H

Flow=600m3/h, Single stage Head=90m efficiency=65%. Three pumps in series, total head 270 m to meet high-head, long-distance transport. Belt drive

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal and use the machine.

* Engineers available to service machinery overseas.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Factory located in Shijiazhuang, Hebei, China.

Q: What information should be known if I want to get a quotation?

A: Pump Usage, Pump Capacity, Pump Head, Slurry SG and working conditions.

Q: How to gurantee the quality?

 A: All pump and spare parts passed ISO 9001:2008 and CE certificate. Warranty time: 12 months except wet end parts.

Q: How long is your delivery time?

A: Generally it is 7-15 days if the goods are in stock. Special material and OEM production is longer about 30-50 days.

Q: Contact Information?

A: Name: Katherine Hou, Cellphone: +8615028111051, katherine at naipump dot com
