Naipu 3 inches Sala Vertical Tank AF series Froth Pump

  • >=1 Sets
    $4,500.00
Type:
Sump Pumps SEWAGE PUMPS Dewatering Pumps Self-Priming Sewage & Trash Pumps Centrifugal Pumps Booster Pumps Circulating Pumps Jet Pumps CHEMICAL PUMPS Fuel & Oil Transfer Pumps HVAC Condensate Removal Pumps Fountain & Pond Pumps Pool & Tub Pumps Marine & RV Pumps Slurry Pumps Froth Pumps Vertical Tank Pumps
Maximum Head:
28 m
Maximum Flow Rate:
80 m3/h
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Samples:
$4,500.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Naipu
Model Number:
3QV-AF
Place of Origin:
Hebei, China
Application:
Commercial Buildings, Industrial Utilities, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions, Carbon transfer, Handle Frothy Slurries, Magnetite mixing
Horsepower:
25
Power Source:
Electric
Pressure:
Low pressure
Structure:
Single-stage Pump, Vertical Pump
Outlet Size:
3 inches
Voltage:
380V, 415V, 440V, 480V...
Power:
18.5 KW
Certification:
ce, ISO
Usage:
Water
Theory:
Centrifugal Pump
Head rate:
6-28 m
Bearing:
SKF, ZWZ, Timken...
Type:
Vertical froth slurry pump
Feature:
Corrosion Resistant
Material:
Cr27, Cr26, A05, A49, A61...
Warranty:
1 Year (except Wearing Parts)
Keywords:
Vertical slurry pump
Supply Ability
Supply Ability:
500 Set/Sets per Month 4 inches froth pump
Packaging & Delivery
Packaging Details
wooden case
Port
Tianjin xingang
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

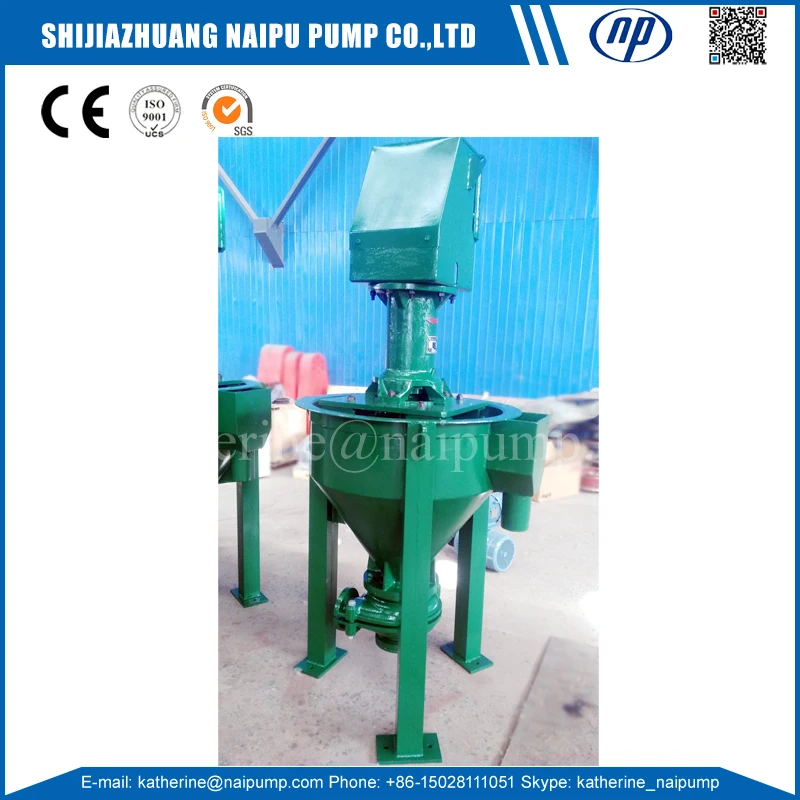

Naipu 3 inches Sala Vertical Tank AF series Froth Pump

AF froth pump have a vertical shaft configuration, and comprise a hopper, with vertical Bearing Assembly, and Type ‘NAH’ pump wet-end. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casing liners and Impellers.


SPECIFICATIONS:

Size: 2-8inch
Capacity: 6-575m3/h
Head: 5-30m
Max.power: 110kw
Materials: High chrome alloy, Rubber,Polyurethane etc.


Naipu Slurry Pumps Detailed features:

• Vertical, heavy duty, double casing, froth slurry pump design • Wetted parts are interchangeable between metal and rubber • Don’t need any shaft seal or seal water. • The feeding suction in the tangent line can accelerate slurry transporting and eliminate part of the froth. • Direct connection or V-belt and pulley driven type for opitions. • suitable for transporting slurry with froth, especially for flotation processing.

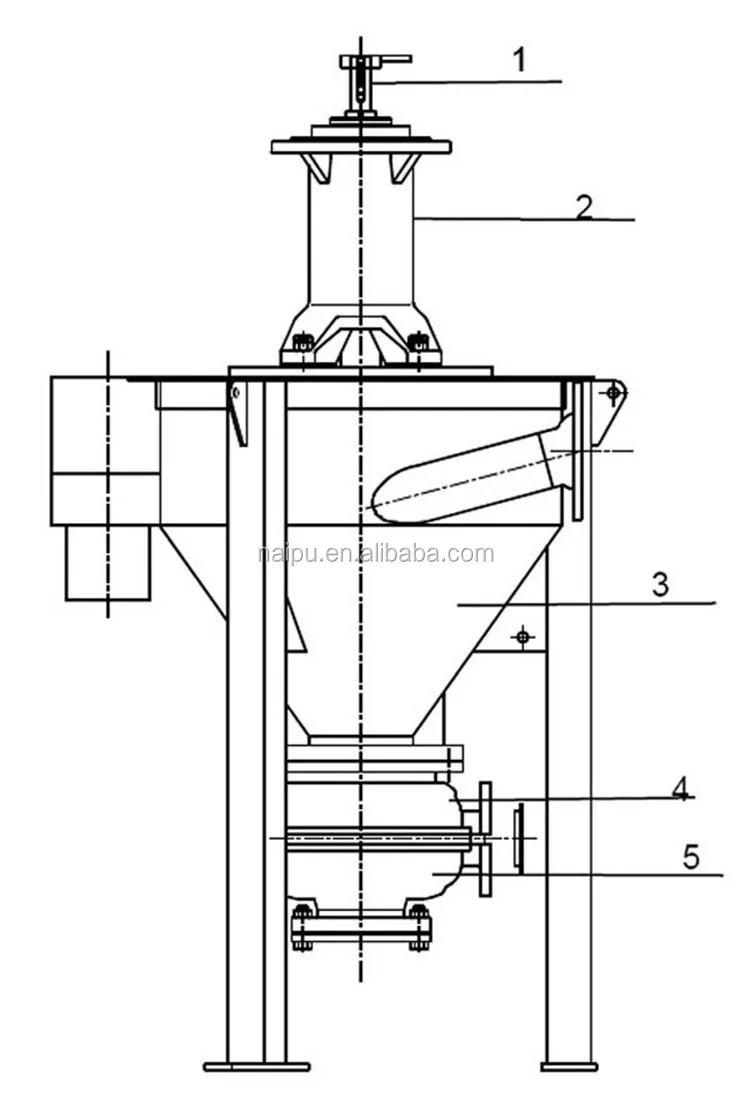

1. Shaft: RVAF073E05
2. Bearing assembly: RV005
3. Tank: RVAF133-3
4. Frame plate: E4013G01
5. Cover plate: E4032G01

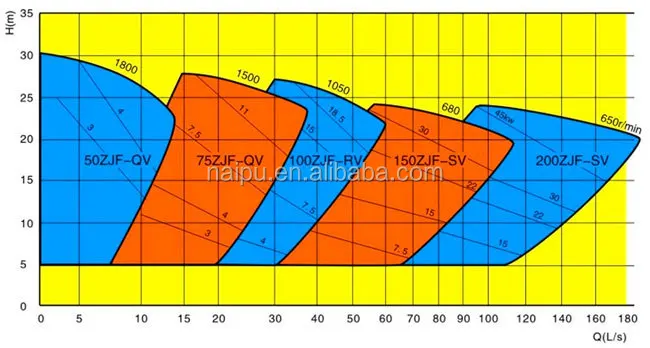

Type
Allowable mating max. power (kw)
Capacity
m3/h
Head
m
Speed
rpm
Max Efficiency
%
Impeller Diameter mm
2QV-NP-AF
15
7.2-33
5-30
800-1800
45
229
3QV-NP-AF
20
10-104
10-28
700-1500
55
268
4RV-NP-AF
40
15-130
6-28
500-1050
55
397
6SV-NP-AF
75
55-330
6-25
350-680
55
560
8SV-NP-AF
110
126-575
5-26
350-650
55

Vertical Froth Slurry Pumps On-site Applications:

• Mining• Flotation processing• Froth slurries• Cyclone feeds• Mineral processing• Chemical slurries• Tailings• Coal prep• Ash
handing• Paper and Pulp• Waste sludge• Coarse sand• Lime mud• Phosphoric acid• Dredging• Construction• Alumina Industry• Power
Plant• Potash Fertilizer Plant• Other industries

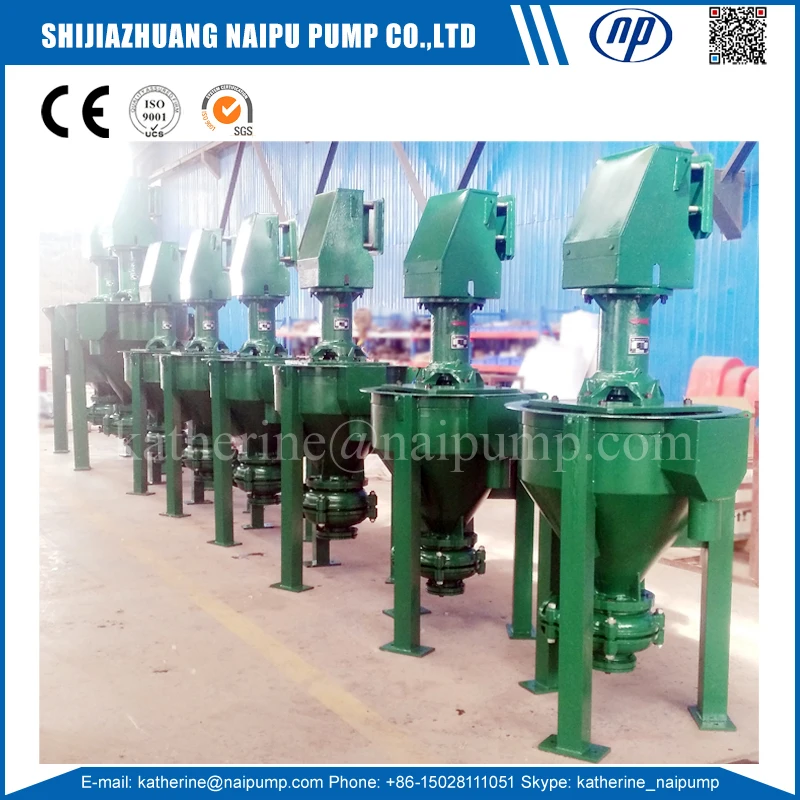

Detailed Images

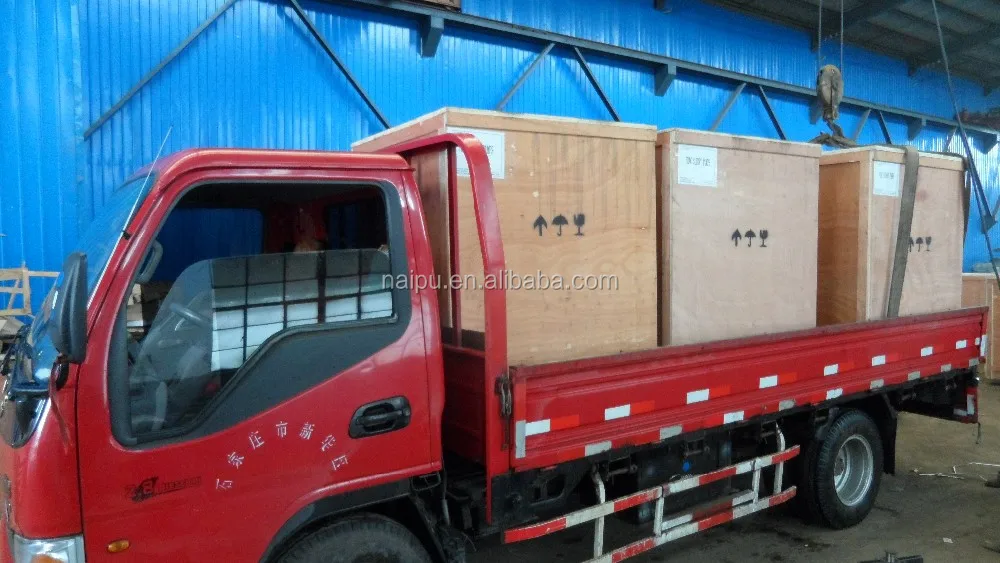

Packing & Delivery

Shock bubble film.

Wood pallet.

Wood Box.

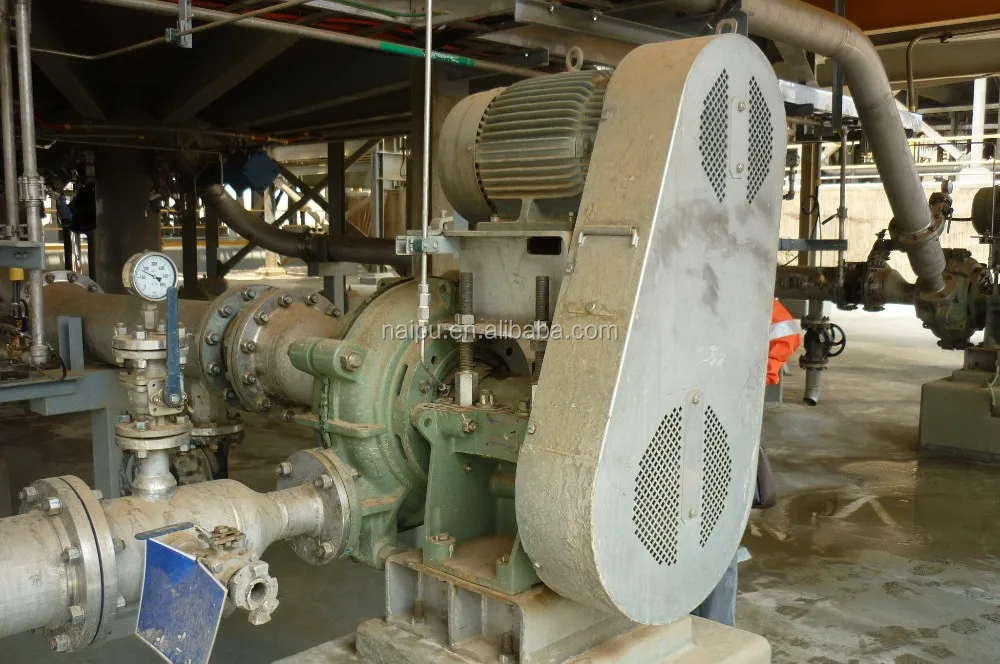

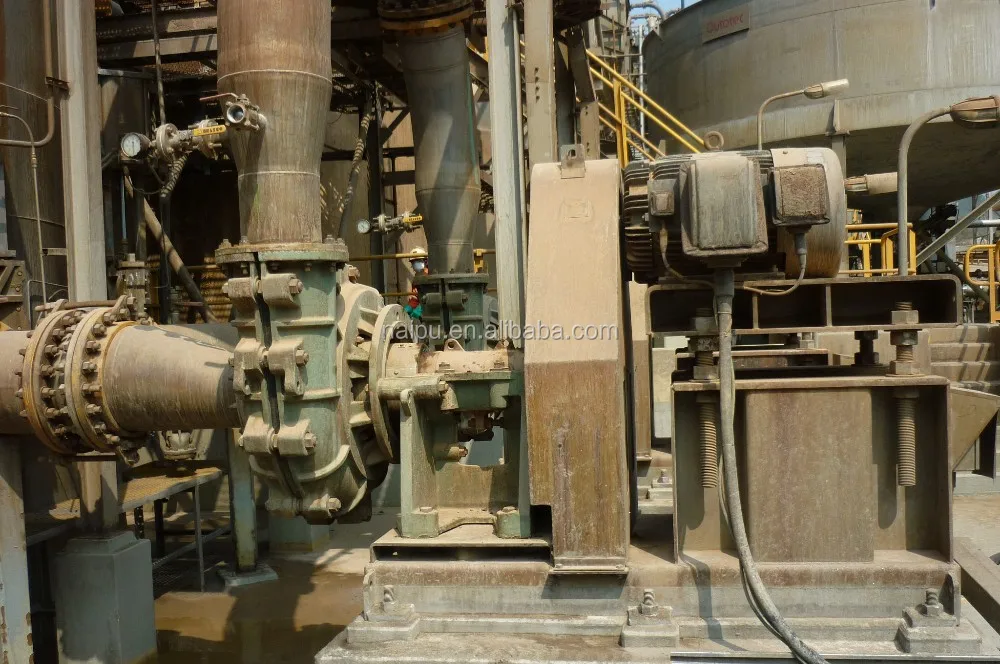

Site Application

China - Iron ore.

14/12 NPAH

Flow=2000m3/h, Head=40m, efficiency=76%

Outlet horizontal on the top of the pump, fulley enclosed protection, CRz drive

South Africa - Molybdenum Ore.

6/4 NPAH

Flow=300m3/h, Head=40.5m, efficiency=66%

Outlet horizontal on the bottom of the pump, fully enclosed protection, CV drive

Canada Lead - Zinc Ore.

8/6 NPAH

Flow=450m3/h, Head=34m, efficiency=70%

Outlet vertical upward, fully enclosed protection, ZVz drive

Russia - Copper Mine.

8 SV-AF

Flow=430m3/h, Head=20m, efficiency=52%

Vertical froth pump work for variety of flotation process, Eliminate foam, even in the case of insufficient feeding. BD drive

Zambia - Copper Mine.

100 RV-SP

Flow=150m3/h, Head=34m, efficiency=50%

Vertical slurry pump immersed in the pool or pit to work. Wet end parts with metal or rubber material. BD drive

Australia - Aluminum ore.

6 S-H

Flow=600m3/h, Single stage Head=90m efficiency=65%. Three pumps in series, total head 270 m to meet high-head, long-distance transport. Belt drive

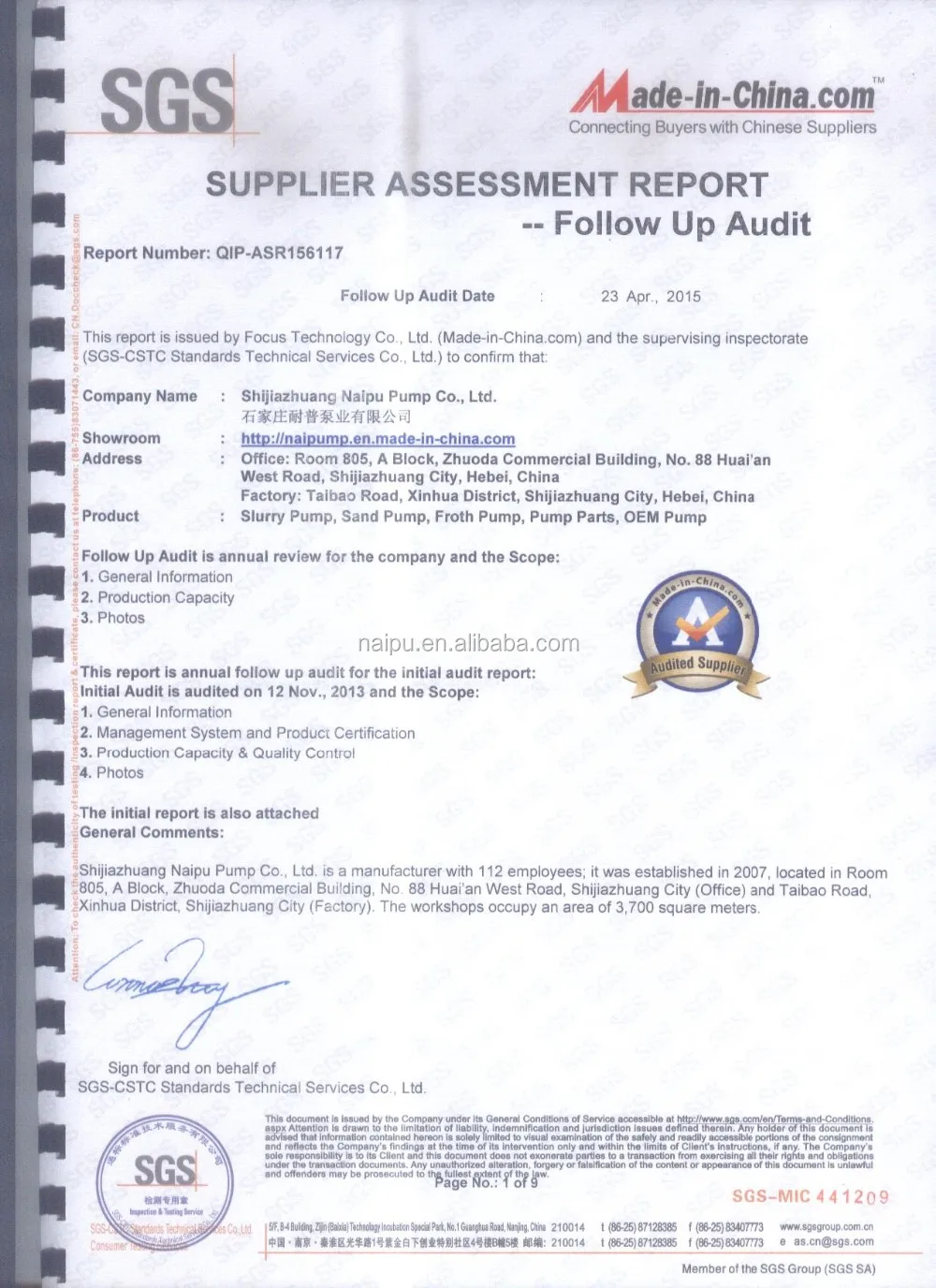

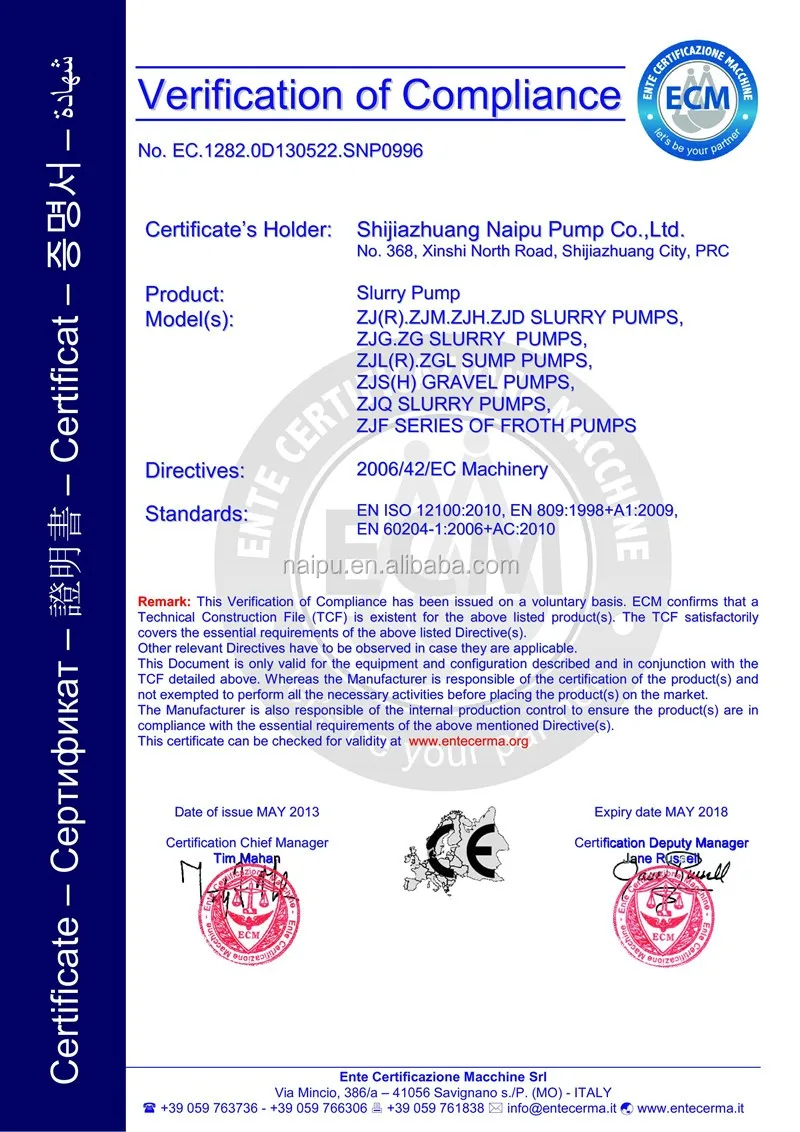

Certifications

SGS

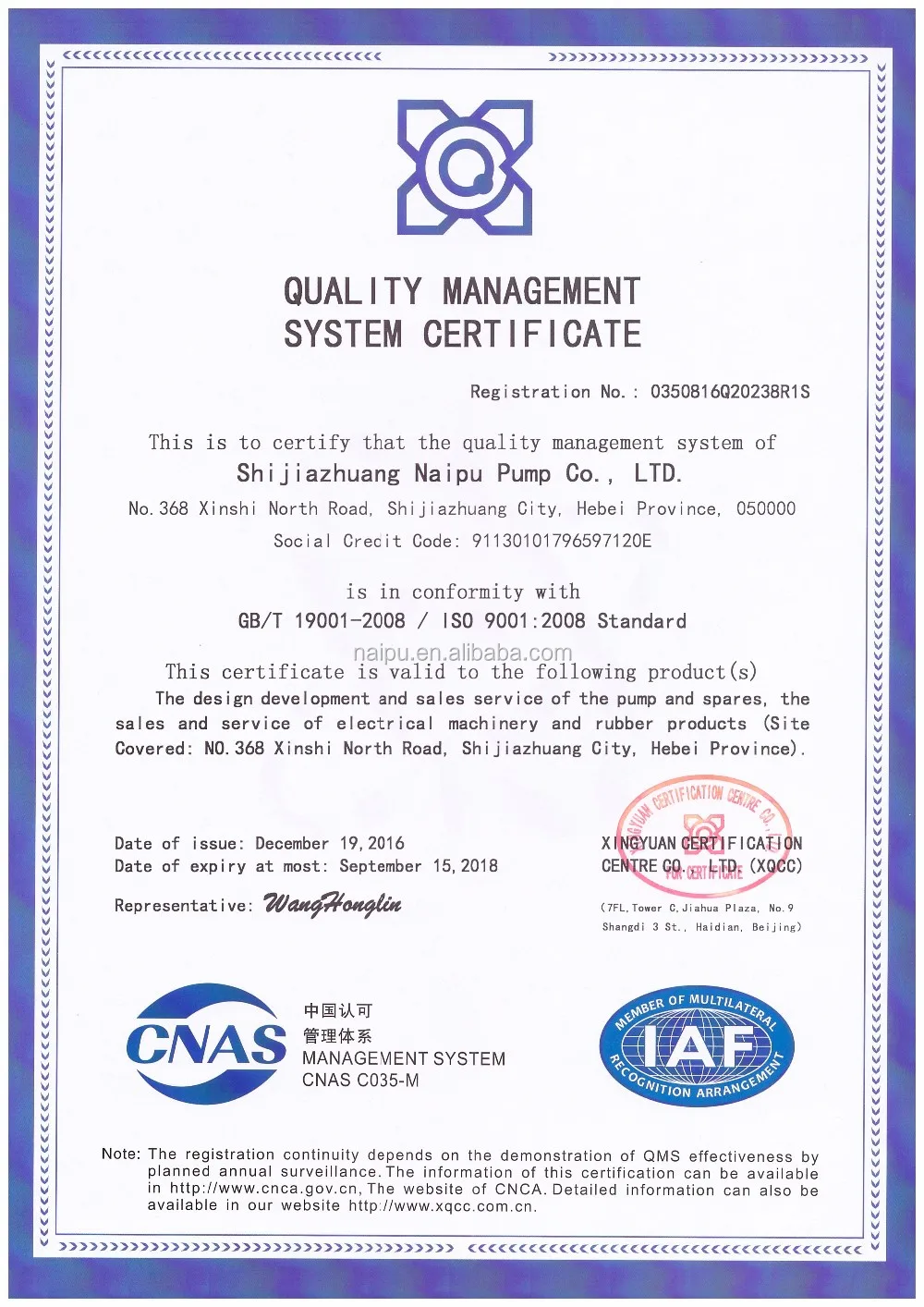

ISO9001

CE

Our Company

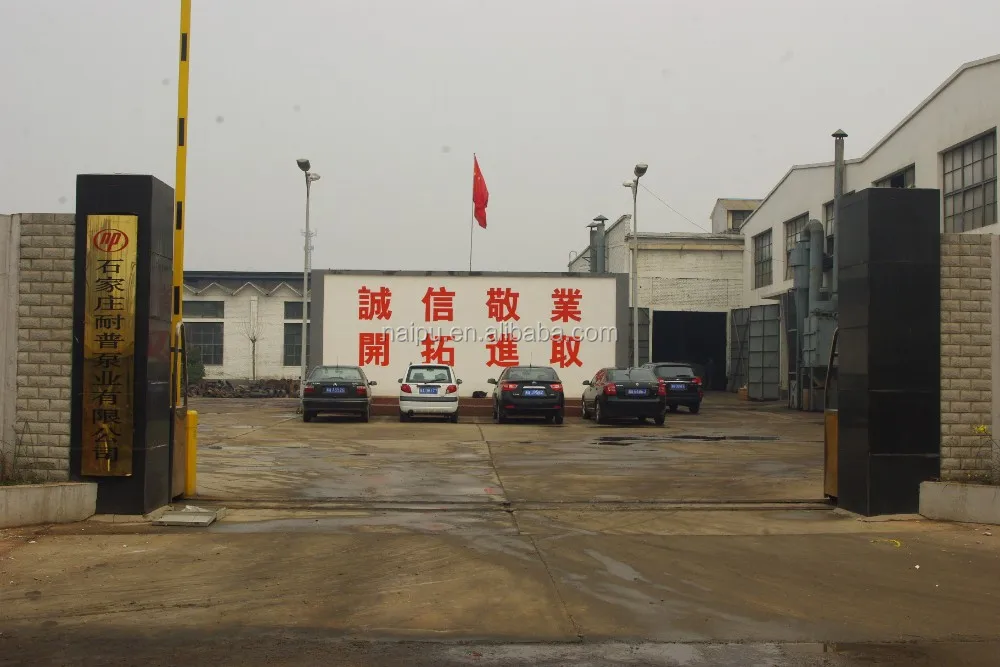

Factory

Shijiazhuang Naipu Pump Co., Ltd

Workshop

Machining Plant.

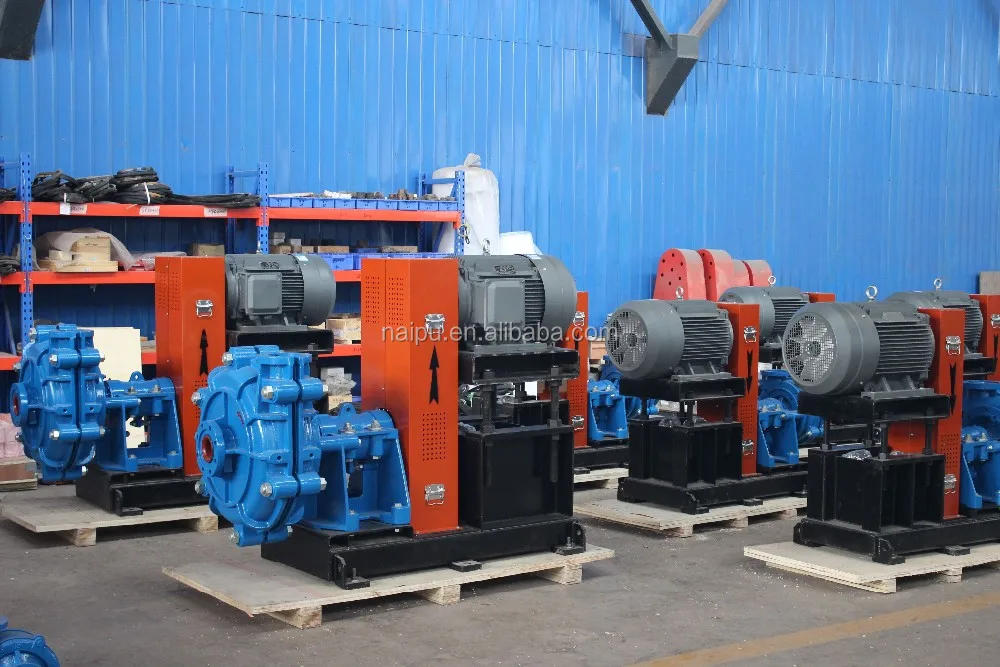

Warehouse

Finished Slurry Pumps.

Visiting

Custom Visit Naipu Factory.

Related Products

L series slurry pump.

Light abrasive centrifugal slurry pump.

HH series slurry pump.

High head slurry pump to 120 m head.

WS series sand pump.

Horizontal sand pump for river sand dreding.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Factory located in Shijiazhuang, Hebei, China.

Q: What information should be known if I want to get a quotation?

A: Pump Usage, Pump Capacity, Pump Head, Slurry SG and working conditions.

Q: How to gurantee the quality?

 A: All pump and spare parts passed ISO 9001:2008 and CE certificate. Warranty time: 12 months except wet end parts.

Q: How long is your delivery time?

A: Generally it is 7-15 days if the goods are in stock. Special material and OEM production is longer about 30-50 days.

Q: Contact Information?

A: Name: Katherine Hou, Cellphone: +8615028111051, katherine at naipump dot com
