NaiPu Submersible Sand Pump Dredging Pump (ZJQ300-50-90)

  • >=1 Sets
    $2,000.00
Type:
Sump Pumps SEWAGE PUMPS Effluent Pumps Dewatering Pumps Centrifugal Pumps Booster Pumps Circulating Pumps
Maximum Head:
60m
Maximum Flow Rate:
2000m3/h
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
naipu
Model Number:
ZJQ
Place of Origin:
Hebei, China
Application:
Machining, Mining industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
Power Source:
Electric
Structure:
Single-stage Pump
Outlet Size:
80-400mm
Voltage:
380v/415v
Power:
3-315kw
Certification:
ce
Standard or Nonstandard:
Standard
Product name:
Submersible Sand Pump Dredging Pump
outlet:
80-400mm
Flow Rate:
25-2000m3/h
Head:
12-60 m
Material:
High Chrome Wearable Alloy A05
Lead Time:
Within 25-45 days
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
tianjin
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

  NaiPu Submersible Sand Pump Dredging Pump (ZJQ300-50-90)



Shijiazhuang NaiPu Pump Co.,Ltd -----Direct factory of Slurry pump , Gravel Sand Pump , Dredge Pump and Wear Parts ,  With 30 years production experience.



Naipu have own Foundry workshop, Machine workshop , Heat treatment Equipment, Assembly workshop and Advanced test equipment.



Naipu can be your China factory , to supply you best quality and preferencial price.





ZJQ Pump Description



Submersible Slurry Sand Dredge Pump



ZJQ submersible centrifugal slurry pumps are mainly used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.





Description



Discharge  Size : 80  to 400mm
Power: Motor
Flow rate : 25m3/h -2000 m3/h
Head : 12-60m

Material : High Chromium Alloy A05



Feature



Compare with common mud pumps and slurry pumps, ZJQ series slurry pumps enjoy the characteristis as follows:

 ♣ Submersible Work without influence of suction head.
 ♣ No assistant vacuum pump, save your investment.
 ♣ No noise, keep the silence of your work station.
 ♣ With agitator, no need extra stirring devices, more convenience for operating.
 ♣ It do not need to build pump house
 ♣Directly works on the surface of the slurry , with more efficiency to delivery slurry





Submersible dredging pump application conditions



1— Power: 50/60HZ, 380V/460V/660V, 3-Phase.
2— Medium Temperature: Max. 40°C and without explosion gas.
3— Slurry Concentration By weight up to 60%.
4— Max submersible depth: <20m
Min submersible depth: >1m
5— Type of installation: Vertical (recommend) or as
customer’s requirement
6— Continuous operation







Performance

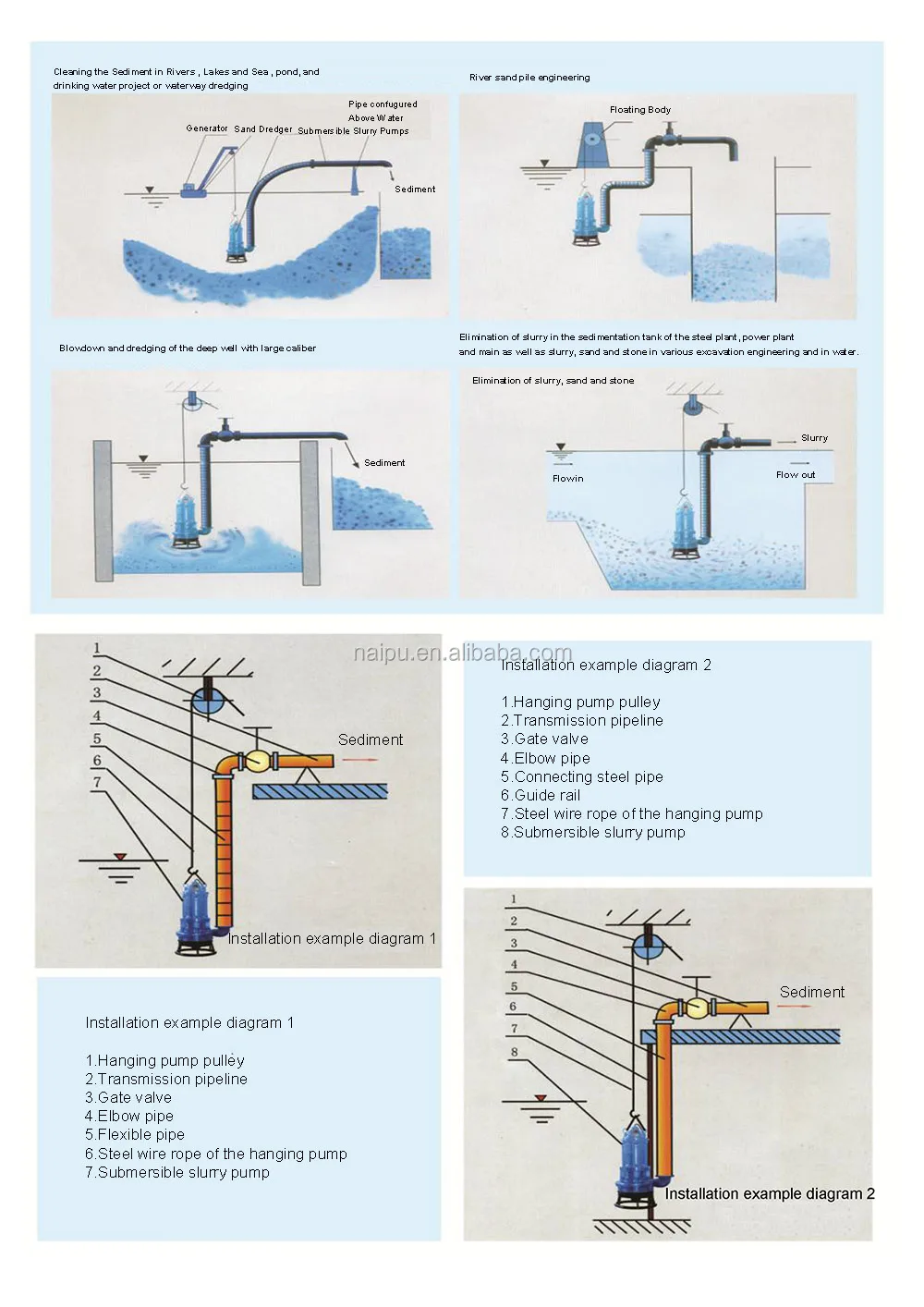

Application



♣Delivery liquid sand , coal clinder solid
♣clearing the mud in lake , river, sea
♣Dredging widening channel





Construction Drawing





Submersible Pump Parts









Sand Gravel Pump



Horizotal Type Gravel Sand Pump



This Type Sand Dredge Pump can be drived by Diesel or Motor







Application and Feature


Naipu dredge and gravel slurry pumps are designed for the continuous handling of the most difficult higher abrasive slurries, containing solids too large to be pumped by a standard slurypump.
They are suitable for delivering slurries in Mining, explosive sludge in metal melting, dredging in
dredger and course of rivers and other fields.

1.Construction of this pump is of single casing connected by means of clamp bands and wide wet passage.

2.The wet-parts are made of Ni-hard and high chromium abrasion-resistance alloys.
3.The discharge direction of pump can be oriented in any direction of 360°.

4.This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and Abrasion-resistance





Typical Applications---


Slag Granulation
Suction Hopper Dredging
Dredging
Barge Loading
Sand Reclamation
Sugar Beet



NP-G Gravel Sand Slurry Pump PERFORMANCE PARAMETERS


Model

Flow(m3/h)

Head(m)

Speed(r/min)

Efficiency(%)

NPSHr/m

Max permissible particle size/mm

6X4D-NP-G

187-36

7-51

1400-600

30-58

1.5-3.7

82

8X6E-NP-G

576-133

10-48

1400-800

60-54

1.2-4.2

127

10X8F-NP-G

930-216

11-44

940-500

65-34

3-7

178

12X10G-NP-G

1512-360

11-58

850-400

70-50

1.5-6

220

14X12G-NP-G

3168-522

9.5-66

700-300

68-60

2-8.5

241

16X14TU-NP-G

3024-900

14-45

500-300

70-50

3.5-6.5

254

10X8F-NP-GH

1091-324

19.2-56.5

800-500

72-60

1.5-5

180

12X10G-NP-GH

2232-612

28-77

700-450

73-60

1.5-8

210

16X14TU-NP-GH

3450-1000

72-25

500-300

78-65

2-8

160

18X16TU-NP-G

3600-1050

42-12

250-450

60-72

2-8

254

18X16TU-NP-GH

4300-1350

70-18

250-500

60-70

2.5-8

254




 Construction Drawing




Main Part Number At The Drawing



003:Base
005:Bearing Assembly
132:Intake Joint
Discharge Joint
130:Discharge Flange
Intake Flange
013:Cover Plate
131:Bowl
137:Impeller
041:Back Liner
135:Door Clamp Ring
134: Adapter Plate Clamp Ring
124:Volute Cover Sea







Materials of Construction




VOLUTE

IMPELLERS

BASE

EXPELLER

EXPELLER RING

SHAFT SLEEVE

SEALS

Standard

High Chrome Alloy

High Chrome Alloy

 Cast Iron

Chrome Alloy
or
SG Iron

Chrome Alloy
or
SG Iron

SG Iron

Natural Rubber

Options

SG Iron

SG Iron

Mild Steel
Fabricated

SG Iron

SG Iron

 EN56C
Ferralium
Hasteloy C
Ceramic
Stellite
Chrome Oxide

Nordel
Neoprene
Viton
Butyl
EPDM







Company Information



ShiJiaZhuang NaiPu Pump Co.,Ltd , Is one of professional factory of slurry pump, sand gravel pump , dredging pump , Water pump and spare parts .



NaiPu Pump is devoted to pump solution industry for more than 30 years!

The Pumps are widely used in  in metallurgy, mining, Nonmetallic Mining, Coal, Energy

resources, Sand mining, Dredging, Environmental protection, Petrochemical engineering, Flue gas desulfurization and other industrial departments.

The Pumps are exported to USA, Canada, Germany, Russia , Australia, South Asia, North America,  South Africa, and etc , up to more than sixty countries.



NaiPu Main products


1. NAH , HH  L Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Vertical Froth Pump

8 .AHF Horizontal Froth Pump

9. TL(R) Desulphurization Pump

10.Clean Water Pump

11. OEM Casting machinery wear parts



 Slurry Pump Model





Main Slurry Pump Parts : Impeller , Volute Liner , Casing , ThroatBush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange , and so on.





OEM Service



We can produce Wear parts according to drawing or sample as customer's requirement.
