NaiPu Sludge Pump Slurry Centrifugal Pump

FOB Reference Price:Get Latest Price
$650.00 - $7,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Effluent Pumps Dewatering Pumps Expeller Ring Seal Slurry Pump
Maximum Head:
5 -118 m
Maximum Flow Rate:
10-5400 m3/h
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Naipu
Model Number:
NAH ,SP, ZJQ
Place of Origin:
Hebei, China
Application:
Industrial Utilities, Machining, Mining industry, Wastewater Transport and Flood Control, wastewater treatment, Mining, Power plant, Coal Washing, sand
Structure:
Single-stage Pump
Certification:
ce
Flow:
5-5400 m3/h
Head:
5-118m
power:
Max 1200kw
Max Eff:
72%
No. of Vane:
5
Feature:
High Abrasive and corrosion resistant
Usage:
Slurry sand Transport
Fuel:
Motor
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

NaiPu Sludge Pump Slurry Centrifugal Pump

Naipu® factory of slurry pump , gravel sand pump , dredging pump and Wear spare parts.

We are direct factory with 30 years's producing experience.
We own mould workshop,foundry workshop, machining workshop, assembly workshop and advanced test equipment. Naipu can be your factory in china.

In addition , We also can produce various spare parts according to the drawing

The Main pump model of NAH HH M L SP AF G Series



NNAH series L(R), M HH SP(R) G AF Series
1.5/1B-NAH(R) 20A-L 1.5/1 C-HH 40PV-SP(R) 6/4D-G 2QV-AF
2/1.5B-NAH(R) 50B-L(R) 3/2D-HH 65QV-SP(R) 8/6E-G 3QV-AF
3/2C-NAH(R) 75C-L 4/3E-HH 100RV-SP(R) 10/8F-G 6SV-AF
4/3C-NAH(R) 100 D-L 4/3X-HH 150SV-SP(R) 10/8S-G 8SV-AF
6/4D-NAH(R) 150E-L 6/4F-HH 200SV-SP 12/10G-G
6/4E-NAH(R) 300S-L 6/4X-HH 250TV-SP 14/12G-G
8/6E-NAH(R) 10/8 R-M 6S-H    14/12T-G
8/6R-NAH(R) 10/8 E-M 8/6S-H    16/14 G-G
10/8F-NAH(R)    8/6X-H    16/14TU-GH
10/8X-NAH(R)    6S-HP    16/14H-GH
12/10ST-NAH(R)    8/6S-HP    18/16G-G
14/12ST-NAH(R)    8/6X-HP    18/16 TU-GH
16/14TU-NAH(R)
20/18G(TU)-NAH(R)
Horizontal Pump

Horizontal Sucks Slurry Pump

Metal Liner Heavy Duty Slurry Pump NAH TYPE

1.5/1B-NAH 2/1.5B-NAH 3/2C-NAH 3/2CC-NAH 4/3C-NAH 4/3CC-NAH 4/3D-NAH 4/3DD-NAH 6/4D-NAH 6/4DD-NAH 6/4E-NAH 6/4EE-NAH 8/6E-NAH 8/6EE-NAH 8/6F-NAH 8/6FF-NAH 8/6R-NAH 10/8ST-NAH 10/8F-NAH 10/8FF-NAH 12/10ST-NAH 12/10G-NAH 12/10F-NAH 12/10FF-NAH 14/12ST-NAH 14/12G-NAH 14/12FF-NAH 14/12F-NAH 16/14TU-NAH 20/18TV-NAH

Rubber Liner Heavy Duty Slurry Pump NAH TYPE
1.5/1B-NAHR 2/1.5B-NAHR 3/2C-NAHR 3/2CC-NAHR 4/3C-NAHR 4/3CC-NAHR 4/3D-NAHR 4/3DD-NAHR 6/4D-NAHR 6/4DD-NAHR 6/4E-NAHR 6/4EE-NAHR 8/6E-NAHR 8/6EE-NAHR 8/6F-NAHR 8/6FF-NAHR 8/6R-NAHR 10/8F-NAHR 10/8X-NAHR 12/10ST-NAHR 14/12ST-NAHR 16/14TU-NAHR

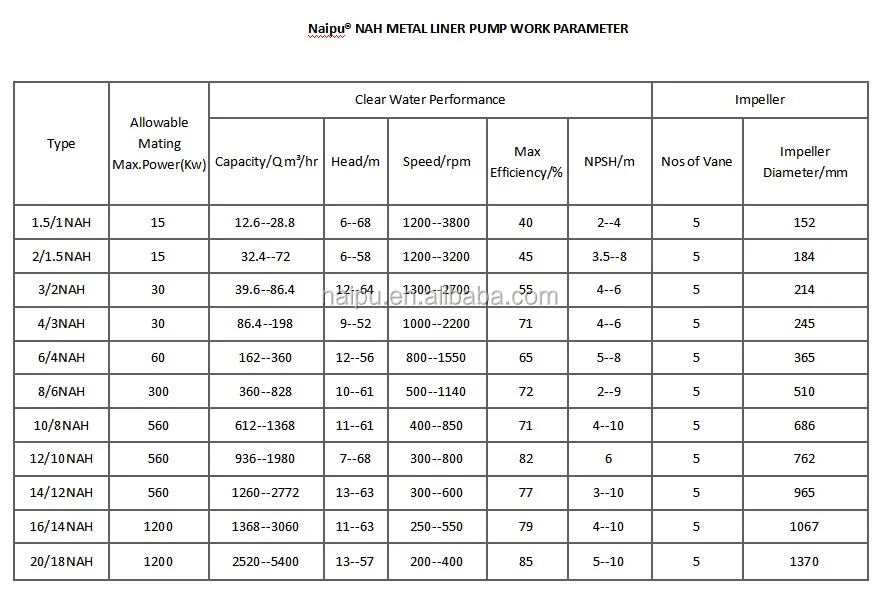

HORIZONTAL SLURRY PUMP PERFORMANCE PARAMETERS





NAH HH M Horizontal Slurry Pumps

Feature and Application:

Naipu® NP-NAH(R) series centrifugal slurry pumps and spare parts can fully interchange with world famous brand.These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and Impellers, which are all interchangeable within a common casting assembly.


Typical Applications---

Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand And Gravel Handling


Horizontal Slurry Pump Constructure



Sump Slurry pump

Vertical Slurry Pump

Metal Liner Vertical Slurry Pump SP TYPE

40PV-SP 65QV-SP 100RV-SP 150SV-SP 200SV-SP 250SV-SP

Rubber Liner Vertical Slurry Pump SP TYPE

40PV-SPR 65QV-SPR 100RV-SPR 150SV-SPR 200SV-SPR



 Pump Drived Type : BD(Belt Drive )  or DC (Direct Drive by Coupling)





NP-SP SUMP PUMP PERFORMANCE PARAMETERS


Type

Allowable Mating Max. Power(Kw)

Range  Of  Performance

Impeller

Capacity/Q

Head/m

Speed/rpm

Max Efficiency/%

No. of Vanes

Impeller Diameter/mm

m³/hr

L/S

40PV-NP-SP

15

19.44-43.2

5.4-12

4.5-28.5

1000-2200

40

5

188

65QV-NP-SP

30

23.4-111

6.5-30.8

5-29.5

700-1500

50

5

280

100RV-NP-SP

75

54-289

15-80.3

5-35

500-1200

56

5

370

150SV-NP-SP

110

108-479.16

30-133.1

8.5-40

500-1000

52

5

450

200SV-NP-SP

110

189-891

152.5-247.5

6.5-37

400-850

64

5

520

250TV-NP-SP

200

261-1089

72.5-302.5

7.5-33.5

400-750

60

5

575

300TV-NP-SP

200

288-1267

80-352

6.5-33

350-700

50

5

610



Features

♣SP pumps are vertical, centrifugal slurry pumps submerged in sump to work.

♣They are designed for delivering abrasive,large particle and high density slurries.
♣These pumps have no need of any shaft seal and sealing water.
♣They can also be operated normally for insufficient suction duties.
♣Wet parts of type NP-SP pump are made of abrasion-resistant metal.
♣All parts of SP(R) pump immersed in liquid are lined with rubber outer liner.
♣They are suited to transport non-edge angle abrasive slurry.



Application



Iron ore dressing plant
Potash fertilizer plant
Copper/Glod /Molybdenum concentration plant
Alumina industry
Coal washing
Sand excavation



Type Notation



 40PV-NP-SP

 40  ---- Discharge Size : 40mm

 PV--  Bearing Assembly Type

 NP--- Shijiazhuang NaiPu Pump Co.,Ltd

 SP---- Sump Pump


Construction Drawing



Main Part Number At The Drawing

1.Discharge Pipe
2.Column
3.Strainer
4.Back Liner
5.Impeller
6.Pump Casing
7.Lower Pipe













ZJQ Pump Description

Description

Discharge  Size : 80  to 400mm
Power: Motor
Flow rate : 25m3/h -2000 m3/h
Head : 12-60m

Material : High Chromium Alloy A05

Feature

Compare with common mud pumps and slurry pumps, ZJQ series slurry pumps enjoy the characteristis as follows:

 ♣ Submersible Work without influence of suction head.
 ♣ No assistant vacuum pump, save your investment.
 ♣ No noise, keep the silence of your work station.
 ♣ With agitator, no need extra stirring devices, more convenience for operating.
 ♣ It do not need to build pump house
 ♣Directly works on the surface of the slurry , with more efficiency to delivery slurry

Application

♣Delivery liquid sand , coal clinder solid
♣clearing the mud in lake , river, sea
♣Dredging widening channel

Performance

Application:

The parts are widely used in Main Applications: Heavy Mining Mineral Processing Sand and Gravel Coal Prep Cyclone Feeds Aggregate Processing Fine Primary Mill Grinding Chemical Slurry Service Tailings Secondary Grinding Industrial Processing Pulp And Paper Food Processing Cracking Operations Ash Handling Pipeline Transport High Velocity Hydraulic Transport Food Processing Explosive Sludge In Metal Smelting River And Pond Dredging Heavy Refuse Removal Larger Particle Or Low NPSHA Applications Continuous (Snore) Sump Pump Operation Abrasive Slurries High Density Slurries Large Particle Slurries Sump Drainage Wash down Floor Drainage Mixing Iron Ore Cooper Diamond Alumina Coal Gold Kaolin Phosphorite Steel Palm Suger Chemical Power FGD Frac Sand Blending Construction City Sewage etc.

Production Flow

Model Workshop --casting Work Shop-- Machining workshop--assembly workshop--stockage, Welcome to visit us.



Factory Name

Shijiazhuang NaiPu Pump Co.,Ltd

Manufacturer or Trading Company

Manufacturer

Workshop

Foundry, Machining,  Assembly

Year the company was established

2007.01.10

Number of employees

162

Designed capacity of factory

3,000.T

Resin Sand 2500T

Lost Foam Casting 500T

Factory area in m2

330,000m2

Does the factory record rejects. If so what is the reported reject rate for past 12 months.

Yes, We record.

the reported reject rate for past 12 months

=7.6%

Quality System Certification

ISO9001-2015

Types of Material the company produces

 Ductile Iron

 Chrome Iron

 Alloy Steel

          Rubber

Melting Equipment

Induction  2T X 2

Non destructive inspection equipment.

Ultrasonic testing equipment UT

Dye penetrant testing PT

typical products the foundry makes

Slurry Pump Wet End Parts

Hydrocyclone Parts

Wear resistant castings

Minimum and maximum casting weight for each moulding system

Max.  6.0T ,  Min.  3Kg



Contact Us

ShiJiaZhuang NaiPu Pump Co.,Ltd

Contact person : kitty Liu

Skype: kitty_naipump

Email: kitty at naipump.com

Mobile /whatsapp: +86-13032609126

Welcome to contact us for more details about S NaiPu Sludge Pump Slurry Centrifugal Pump
