NaiPu Abrasion Resistant Sludge Sand Gravel Slurry Pump in China

  • 1 - 9 Sets
    $56,000.00
  • >=10 Sets
    $50,000.00
Type:
Dewatering Pumps Centrifugal Pumps
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Brand Name:
OEM
Model Number:
ZJH, ZJM, ZJ(R)
Place of Origin:
Hebei, China
Application:
Mining industry, wastewater treatment, Sludge Sand Gravel Slurry pump
Structure:
Diaphragm Pump
Certification:
ce
Standard or Nonstandard:
Standard
Power:
Electric
Theory:
Centrifugal Pump
Material:
Cast Iron
Color:
Blue Yellow,Red and coustomer's require
Lead Time:
Within 10-15 days
Slurry Pump type:
Rubber Lined Slurry Pump
Fuel:
Diesel
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
tianjin
Video Description
Horizontal Pump
Manufacture of Sand pump, dredging pump, slurry Pump , Industrial Water Pump

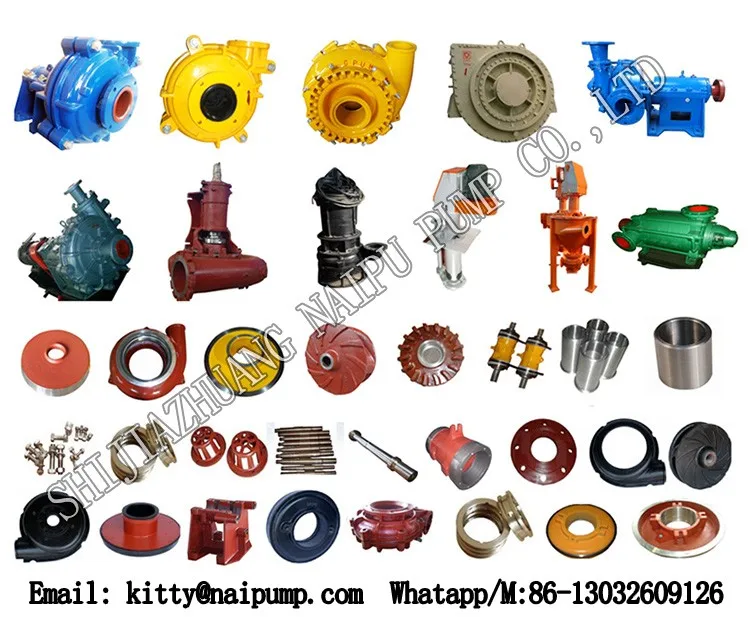

NaiPu Main products
1. NAH , NAHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. OEM Casting machinery parts
Welcome contact me for the slurry pump catalogue and price list

Description

Material

High Chrome alloy or Nature rubber

Size

1-18"

Pump Type

Single Stage Single SuctionCentrifugal slurry pumps

Drive

ZVz/CRz/CV/DC

Power

Motor/diesel

capacity

0-5400m3/h

Head

0-118m

Seal Type

Mechanical seal, packing seal , expeller seal

MQQ

1 set

Sample Time

Within 15 days

OEM Accepted

Yes

Package

Free fumigation wooden cases

Payment term

TT , west union, Money gram

Application and Feature
Type NAH, M, HH Pump are cantilevered, horizontal, centrifugal slurry pump.
They are designed for the handing high density slurries in the metallurgical, mining , coal, power, building material

   and other industrial department etc.
The pump of this type also maybe installed in multistage series.
The frame plates liner and impeller for type NAH, M pumps have replaceable wear-resistant metal liners or rubber liners,

 The frame plate liner and impeller for HH pump are adoptable of wear-resistant metal only.
The shaft seals Type: Gland seal , Expeller Seal , mechanical Seal
♣  Discharge branch can be positioned at intervals of 45 degrees



NP-NAH SLURRY PUMP PERFORMANCE PARAMETERS

Type Allowable Mating Max. Power(Kw) Clear Water Performance Impeller
Capacity/Q m³/hr Head/m Speed/rpm Max Efficiency/% NPSH/m Nos of Vane Impeller Diameter/mm
1.5X1-NP-NAH 15 12.6--28.8 6--68 1200--3800 40 2--4 5 152
2X1.5-NP-NAH 15 32.4--72 6--58 1200--3200 45 3.5--8 5 184
3X2-NP-NAH 30 39.6--86.4 12--64 1300--2700 55 4--6 5 214
4X3-NP-NAH 30 86.4--198 9--52 1000--2200 71 4--6 5 245
6X4-NP-NAH 60 162--360 12--56 800--1550 65 5--8 5 365
8X6-NP-NAH  300 360--828 10--61 500--1140 72 2--9 5 510
10X8-NP-NAH  560 612--1368 11--61 400--850 71 4--10 5 686
12X10-NP-NAH 560 936--1980 7--68 300--800 82 6 5 762
14X12-NP-NAH 560 1260--2772 13--63 300--600 77 3--10 5 965
16X14-NP-NAH 1200 1368--3060 11--63 250--550 79 4--10 5 1067
18X16-NP-NAH 1200 2520--5400 13--57 200--400 85 5--10 5  1370



Structure



Fully Interchangeable Pump
NP-NAH(R) Slurry Pump Showing Elastomer And Metal Lined Component





Main Part Number At The Drawing

032:Frame Plate                           122: Stuffing Box Seal
060: Intake Joint                            036: Frame Plate Liner
132:Discharge Joint                       013:Cover Plate
083:Throatbush                            018:Cover Plate Liner
110:Volute Liner                           124: Volute Cover Seal
147: Impeller                                  041: Frame Plate Liner Insert

Materials of Construction

  LINERS IMPELLERS CASING BASE EXPELLER EXPELLER RING SHAFT SLEEVE SEALS
Standard Chrome Alloy
Natural Rubber
Chrome Alloy
Natural Rubber
SG Iron SG Iron Chrome Alloy
or
SG Iron
Chrome Alloy
or
SG Iron
SG Iron Rubber
and
Nitrile
Options Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Viton
Nitrile
EPDM
Hypalon
Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Nitrile
Hypalon
SG Iron
Various grades
MS
Fabricated
Cast Iron
NI Resist
Ferralium
Hastelloy C
Polyurethane
316 SS
W151
NI Resist
Ferralium
Hastelloy C
316 SS
Rubber
W151
Polyurethane
Neoprene
Butyl
Nitrile
EN56C
Ferralium
Hastelloy C
Titanium
316 SS
304 SS
Ceramic
Stellite
Chrome Oxide
Nordel
Neoprene
Viton



NP-NAH(R) PUMP SELECTION CHART





Company Information

ShiJiazhuang Naipu Pump Co.,Ltd  is Specialized in the manufacturer and sales of slurry pump and pump parts.



We own mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop .

Naipu is willing to undertake any OEM(Origin Equipment Manufacture) order for casting spare parts and machining parts accoring to the drawing or sample.

Considering various requirement for material in the market, we can supply wet end part material as following, metal material A05,A07,A12,A33,A49,A61 and etc. Rubber material R08, R26, R33,R55, S01, S12, S21, S31, S42 and etc. Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.



The Products are widely used in mining , power, metallurgy, coal , dredging, building material and other industrial lines to pump concentrate, tailing,sludge, and other abrasive high density slurries.

5.1 NaiPu Main products

1. NAH , NAHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump
8. OEM slurry pump parts and Casting machinery parts

NaiPu Main Pump Model

NAH series

L(R) ,M

HH

SP(R)

G

AF Series

1.5/1B-NAH(R)

20A-L

1.5/1 C-HH

40PV-SP(R)

6/4D-G

2QV-AF

2/1.5B-NAH(R)

50B-L(R)

3/2D-HH

65QV-SP(R)

8/6E-G

3QV-AF

3/2C-NAH(R)

75C-L

4/3E-HH

100RV-SP(R)

10/8F-G

6SV-AF

4/3C-NAH(R)

100 D-L

4/3X-HH

150SV-SP(R)

10/8S-G

8SV-AF

6/4D-NAH(R)

150E-L

6/4F-HH

200SV-SP

12/10G-G



6/4E-NAH(R)

300S-L

6/4X-HH

250TV-SP

14/12G-G



8/6E-NAH(R)

10/8 R-M

6S-H



14/12T-G



8/6R-NAH(R)

10/8 E-M

8/6S-H



16/14 G-G



10/8F-NAH(R)



8/6X-H



16/14TU-GH



10/8X-NAH(R)



6S-HP



16/14H-GH



12/10ST-NAH(R)



8/6S-HP



18/16G-G



14/12ST-NAH(R)



8/6X-HP



18/16 TU-GH



16/14TU-NAH(R)











20/18G(TU)-NAH(R)















WorkShop

Model Workshop --casting Work Shop-- Machining workshop--assembly workshop--stockage, Welcome to visit us.



Quality Control

Our company passed the ISO 9000 quality control system, and strictly implement following standard:





Stages of manufacture



  Quality Control Activities



 Specification



Raw material arrival



Sampling, material chemical analysis

NPB121.1-29-1997



Casting and composition



Material chemical analysis of pump parts

NPB121.1-29-1997



Casting quality inspection

NPB302-1998



Key component machining



Dimension precision inspection

NPB2105-87



Impeller balancing

NPB061-2000



General assembly



Procedure operation

NPB2103-96



Hydraulic static test

NPB064-1998



Performance test of pump unit



Capacity and head

NPB0157-1997



Vibration and noise

JB/T8097-95



Bearing temperature

JB/T5295-91





Final inspection



Packaging of pump unit

NPB0157-1997



Documents

NPB0157-1997



Spare parts and accessories

NPB0157-1997



Our Services

1. Quick Reply
The  inquiry will get  reply within 8hours . or  direct contact me  86-13032609126
2.Pump selection
Please let us know the application, capacity and head ,We can help to select the suitable pump
3.Technical Surport .
We have a group of high quality technicians with rich experience who can solve everything  during the whole process.
4. Guarantee quality.
All the products  have been proved by ISO 9001:2008, CE, SGS. And  all the pump and parts will  be inspected strictly before delivery.
Warranty time : 1 year (except  wet parts )
5.Perfect after -sales
Whenever there are quality problems, we will be responsible
6.OEM Mechanical Parts and Fabrication Service
We can produce the mechanicalparts according to the drawing or sample
Many material are available ,like High chrome, rubber , stainless steel and cast Iron etc.
