Centrifugal Packing Mechanical Slurry Pump Seal

FOB Reference Price:Get Latest Price
$1,000.00 - $6,000.00 / Set | 1 Set/Sets (Min. Order)
Maximum Flow Rate:
10-5400m3/h
Horsepower:
2.2-1500kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
NaiPu
Model Number:
AH
Place of Origin:
Hebei, China
Pressure:
high Pressure
Structure:
Single-stage Pump
Theory:
Centrifugal Pump
Standard or Nonstandard:
Standard
Material:
Wear -Resistant Metal or Elastomer
Drive type:
ZVz/CRz/CV/DC
Power:
Motor/Diesel, Electric
Discharge:
1-18 inch
capacity:
0-1000 l/s
head:
0-70m
Color:
blue, yellow, green, grey or as customer's request
MQQ:
1 Set
Usage:
mining , slurry , dredging , coal, engine
Application:
mining slurry
Fuel:
diesel or Motor
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden cases
Port
Tianjin
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated

                          Centrifugal Packing Mechanical Slurry Pump Seal

FACTORY OF SLURRY PUMP , SAND GRAVEL PUMP , DREDGING PUMP , AND SPARE PARTS , CASTING PARTS , MACHINING PARTS.





AH HH M Pump



There are 3 types of Shaft Slurry Pump Seals : Expeller Seal ,  Packing Seal , Mechanical Seal

Packing Seal :
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller seal:

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical Seal :
Heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.

We also utilize special ceramic and alloys of high strength and hardness on parts that are subjected to friction. Unique design of and seamless fit between the mechanical seal and seal chamber provides excellent resistance to abrasion and shock that ensures its effectiveness under the toughest conditions





General Information



Material

High Chrome alloy or Nature rubber

Size

1-18"

Pump Type

Single Stage Single SuctionCentrifugal slurry pumps

Drive

ZVz/CRz/CV/DC

Power

Motor/diesel

capacity

0-5400m3/h

Head

0-118m

Seal Type

Mechanical seal, packing seal , expeller seal

MQQ

1 set

Sample Time

Within 15 days

OEM Accepted

Yes

Package

Free fumigation wooden cases

Payment term

TT , west union, Money gram

Application and Feature
♣Type AH, M, HH Pump are cantilevered, horizontal, centrifugal slurry pump.
♣They are designed for the handing high density slurries in the metallurgical, mining , coal,
power, building material and other industrial department etc.
♣The pump of this type also maybe installed in multistage series.
♣The frame plates liner and impeller for type ZJR , ZJ(M) pumps have replaceable wear-resistant metal liners or rubber liners, The frame plate liner and impeller for HH pump are adoptable of wear-resistant metal only.
♣The shaft seals Type: Gland seal , Expeller Seal , mechanical Seal
♣  Discharge branch can be positioned at intervals of 45 degrees



Four Types Drive Type : CV,CRz, ZVz, Dcz

Application

 ZJR, ZJM, ZJH pumps are using for handing strong abrasive, high density slurries and low density, high head slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.

For example: Coal washery processing, handling with the fine ore and tailings in metal mine, handing combined bottom and fly ash in a thermal power station.

Typical Application



Ball mill discharge

Bottom/fly ash, lime grinding

Coal

Coarse sand

Coarse tailings

Dredging

FGD

Fine tailings

Flotation

Heavy media

Minerals  concentrate

Mineral sands

Ni acid slurry

Oil sands

Phosphoric acid

Phosphate matrix

Process chemical

Pulp and paper

Rod mill discharge

SAG mill discharge

Wet crushers

Alumina

Copper

Molybdenum

Iron Ore

Gold

Lead &zinc

Silver

Bauxite

Titanium

 Steel

Sand & Gravel



NP-AH SLURRY PUMP PERFORMANCE PARAMETERS

TypeAllowable Mating Max. Power(Kw)Clear Water PerformanceImpeller
Capacity/Q m³/hrHead/mSpeed/rpmMax Efficiency/%NPSH/mNos of VaneImpeller Diameter/mm
1.5X1-NP-AH1512.6--28.86--681200--3800402--45152
2X1.5-NP-AH1532.4--726--581200--3200453.5--85184
3X2-NP-AH3039.6--86.412--641300--2700554--65214
4X3-NP-AH3086.4--1989--521000--2200714--65245
6X4-NP-AH60162--36012--56800--1550655--85365
8X6-NP-AH 300360--82810--61500--1140722--95510
10X8-NP-AH 560612--136811--61400--850714--105686
12X10-NP-AH560936--19807--68300--8008265762
14X12-NP-AH5601260--277213--63300--600773--105965
16X14-NP-AH12001368--306011--63250--550794--1051067
18X16-NP-AH12002520--540013--57200--400855--105 1370

Structure

Fully Interchangeable Pump
NP-AH(R) Slurry Pump Showing Elastomer And Metal Lined Component

Main Part Number At The Drawing

032:Frame Plate                           122: Stuffing Box Seal
060: Intake Joint                            036: Frame Plate Liner
132:Discharge Joint                       013:Cover Plate
083:Throatbush                            018:Cover Plate Liner
110:Volute Liner                           124: Volute Cover Seal
147: Impeller                                  041: Frame Plate Liner Insert


Metal  Slurry Pump Horizontal Spare Parts

Elastomer Slurry Pump Horizontal Spare Parts

Materials of Construction

 LINERSIMPELLERSCASINGBASEEXPELLEREXPELLER RINGSHAFT SLEEVESEALS
StandardChrome Alloy
Natural Rubber
Chrome Alloy
Natural Rubber
SG IronSG IronChrome Alloy
or
SG Iron
Chrome Alloy
or
SG Iron
SG IronRubber
and
Nitrile
OptionsFerralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Viton
Nitrile
EPDM
Hypalon
Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Nitrile
Hypalon
SG Iron
Various grades
MS
Fabricated
Cast Iron
NI Resist
Ferralium
Hastelloy C
Polyurethane
316 SS
W151
NI Resist
Ferralium
Hastelloy C
316 SS
Rubber
W151
Polyurethane
Neoprene
Butyl
Nitrile
EN56C
Ferralium
Hastelloy C
Titanium
316 SS
304 SS
Ceramic
Stellite
Chrome Oxide
Nordel
Neoprene
Viton
Company Information

ShiJiaZhuang NaiPu Pump Co.,Ltd , Is one of professional factory of slurry pump, sand gravel pump , dredging pump , Water pump and spare parts .

NaiPu Pump is devoted to pump solution industry for more than 30 years!



The Pumps are widely used in  in metallurgy, mining, Nonmetallic Mining, Coal, Energy

resources, Sand mining, Dredging, Environmental protection, Petrochemical engineering, Flue gas desulfurization and other industrial departments.



The Pumps are exported to USA, Canada, Germany, Russia , Australia, South Asia, North America,  South Africa, and etc , up to more than sixty countries.



NaiPu Main products
1. AH , AHF,Horizontal Slurry Pump
2. SP Vertical sump pump
3. ZJQ Submersible slurry pump
4. G Horizontal sand gravel pump
5. ZJQ Submersible sand pump
6. WS Dredging pump
7. AF Froth Pump

8. TL(R) Desulphurization Pump

8.Clean Water Pump

9. OEM Casting machinery parts

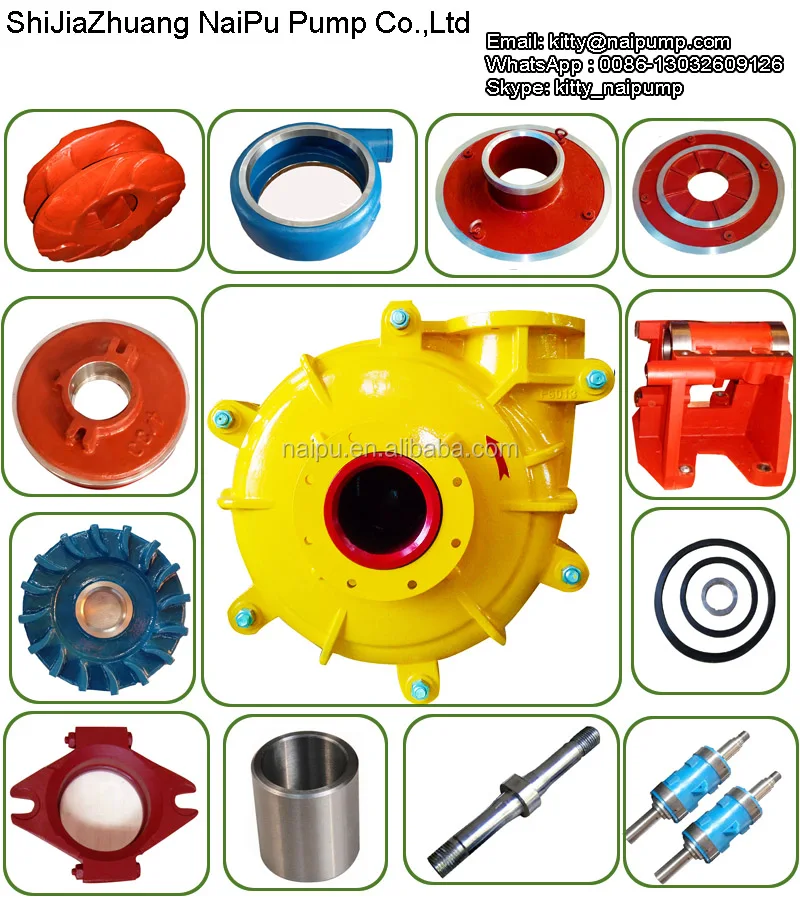

Main Slurry Pump Parts : Impeller , Volute Liner , Casing , ThroatBush, Frame Plate Liner Insert , Cover Plate , Frame Plate, Pump Liner Expeller , Expeller Ring ,Stuffing Box , Expeller , Pump Shaft , shaft sleeve, Shaft Spacer, Bearing Assembly , Base, Stuffing Box, Gland Assembly, Bearing Housing , Lantern Ring , pump discharge pipe , flange , and so on.





Quality Control

Our company passed the ISO 9000 quality control system, and strictly implement following standard:





Stages of manufacture



  Quality Control Activities



 Specification



Raw material arrival



Sampling, material chemical analysis

NPB121.1-29-1997



Casting and composition



Material chemical analysis of pump parts

NPB121.1-29-1997



Casting quality inspection

NPB302-1998



Key component machining



Dimension precision inspection

NPB2105-87



Impeller balancing

NPB061-2000



General assembly



Procedure operation

NPB2103-96



Hydraulic static test

NPB064-1998



Performance test of pump unit



Capacity and head

NPB0157-1997



Vibration and noise

JB/T8097-95



Bearing temperature

JB/T5295-91





Final inspection



Packaging of pump unit

NPB0157-1997



Documents

NPB0157-1997



Spare parts and accessories

NPB0157-1997
